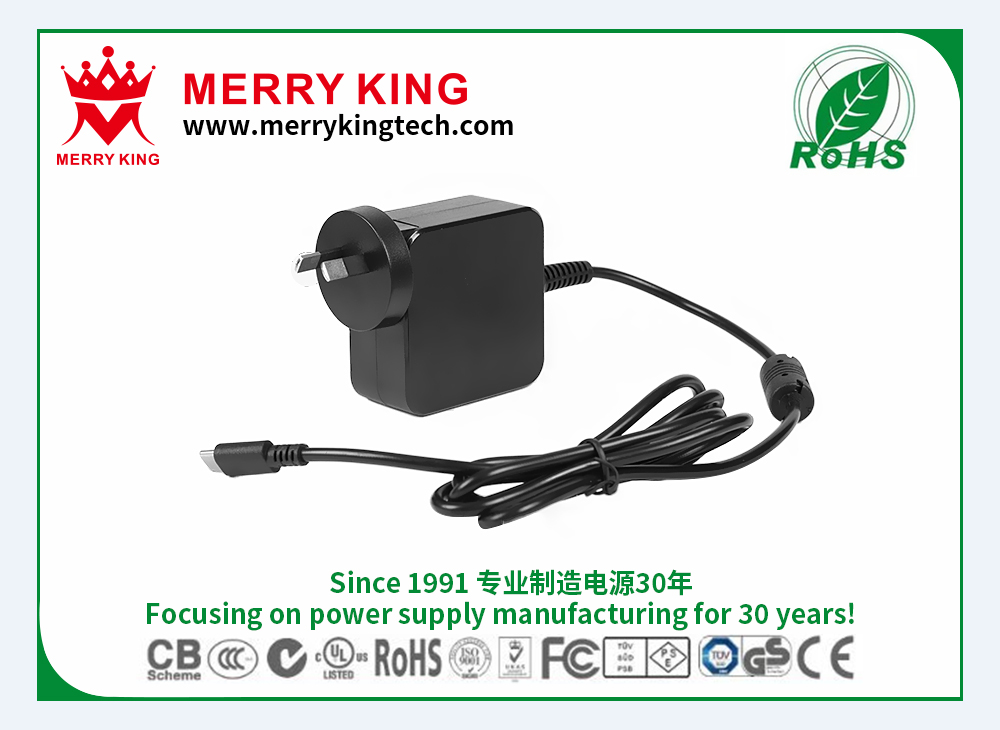

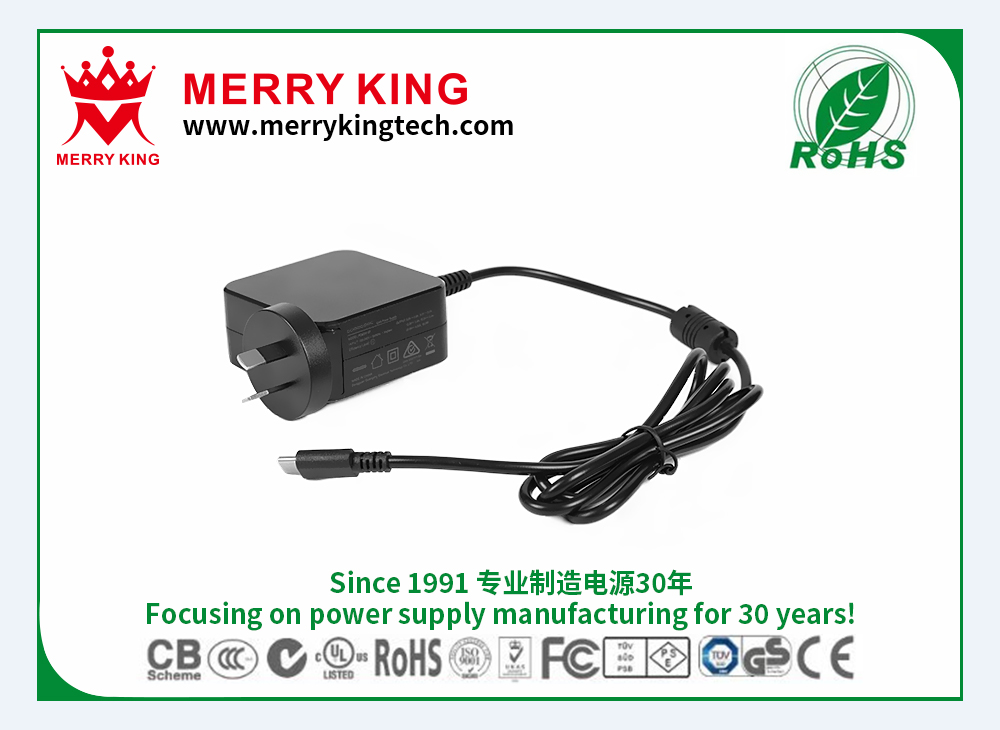

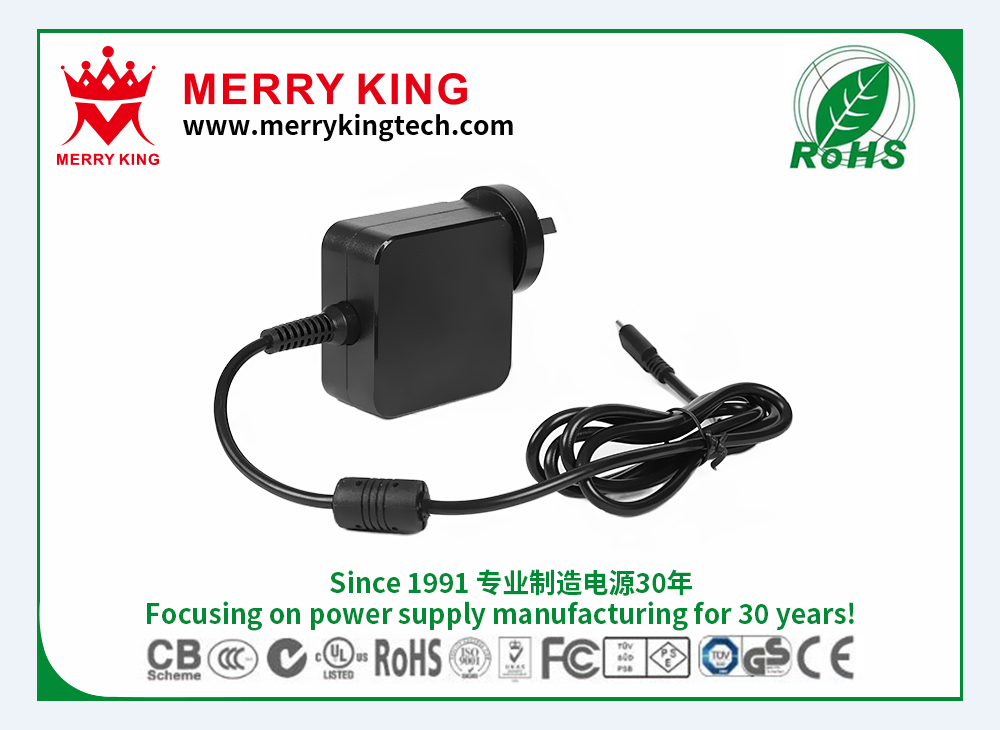

PD65W Wall Plug AU PD Charger

Universal input voltage

Interchangeable / Folding plug

Short circuit protection

Level VI Efficiency Regulations Compliance

Super Mini Size and Easy Portable

High efficiency & reliability

Outputs are available at request

Constant Current For Battery Charge

Optional output connectors

Three year limited warranty

Inquiry

Product Description

Input Voltage: 100~240V AC 50~60Hz

Input plug:Interchangeable / Folding plug

Output Voltage:5V3A/9V3A/12V3A/15V3A/20V2.25A/20V3.25A

Protection: Over voltage protection & Over current protection & Over Temperature protection & Short circuit protection & Reverse polarity protection.

Temperature coefficient: All out+-0.04%℃ maximum

Transient response:Maximum excursion of 4% or better on all models.Recovering to 1% of final value within 500uS after a 25% step load change.

Operating temperature:0℃~+40℃.

Storage temperature:-40℃~+85℃;.

Relative humidity:5% to 95% non-condensing.

Insulation resistance:50Mohm minimum from output to ground.

Withstand voltage:4300VDC from input to output

Mean time between failure:100,000 hours minimum at full load 25℃ ambient

Energy Saving (Level VI / Level 6)

EMC requirements:FCC CLASS B, EN55022 CLASS B.EN 55024: 1998+A1: 2001+A2: 2003; Part 15 Subpart B, IC ICES-003

Safety requirements:UL 60950-1: 2007,EN 55022:55024/EN 60950-1/EN 61558-1/EN 61558-2-16,EN 60950-1/EN 61558-1/EN 61558-2-16/AfPS GS 214,AS/NZS 60950-1:2011& AS/NZS 3112:2011.

Warranty: 3- Years.
